30 Aug 2021

Noble gas sampling in air and subsurface using ultra low background high purity germanium

© ENEA
© ENEA

Analysis and assessment of radioactive noble gases concentrations in the atmosphere and in the geosphere has becoming more and more interesting for the study of some problems concerning the use of nuclear energy, both for industrial purposes (production of electrical energy, storage depots for radioactive waste), medical purpose (production of radiopharmaceuticals) and military (atomic tests). Radioactive isotopes of xenon represent a significant indicator of nuclear production due to the lower natural background compared to the stable isotopes one. For this reason, the Traceability Laboraotry (FSN-SICNUC-TNMT) of Brasimone optimized an anticoincidence gamma spectrometry system for the detection of radioactive noble gases, in particular xenon isotopes (Xe-131m , Xe-133, Xe-133m and Xe-135), which are of particular interest to the Comprehensive Nucelar Test-Ban Treaty Organization (CTBTO).

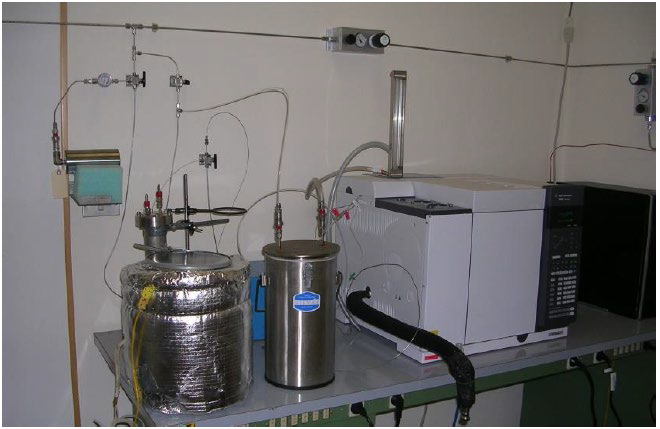

Xenon extraction plant at the ENEA Noble Gas Laboratory in Brasimone. On the right, the gas chromatograph © ENEA
Xenon extraction plant at the ENEA Noble Gas Laboratory in Brasimone. On the right, the gas chromatograph © ENEA

The system is based on the sampling of the external air, filtration, drying and passage on an activated carbon column maintained at a cryogenic temperature to allow the adsorption of the xenon. The column is then heated to allow the extraction of the gas and the measurement of the volume of xenon by a gas chromatograph equipped with a thermal conductivity detector. At the end of this phase, the Al container with the radioxenon is subjected to analysis by high-resolution gamma spectroscopy using a p-type hyperpure germanium detector (HPGe GX6020), with relative efficiency of 60% and FWHM of 1.95 keV in correspondence of the gamma ray of Co-60 of energy equal to 1332 keV. The detector is surrounded by an electrolytic copper and antique lead screen, 3.5 cm and 15 cm thick respectively.

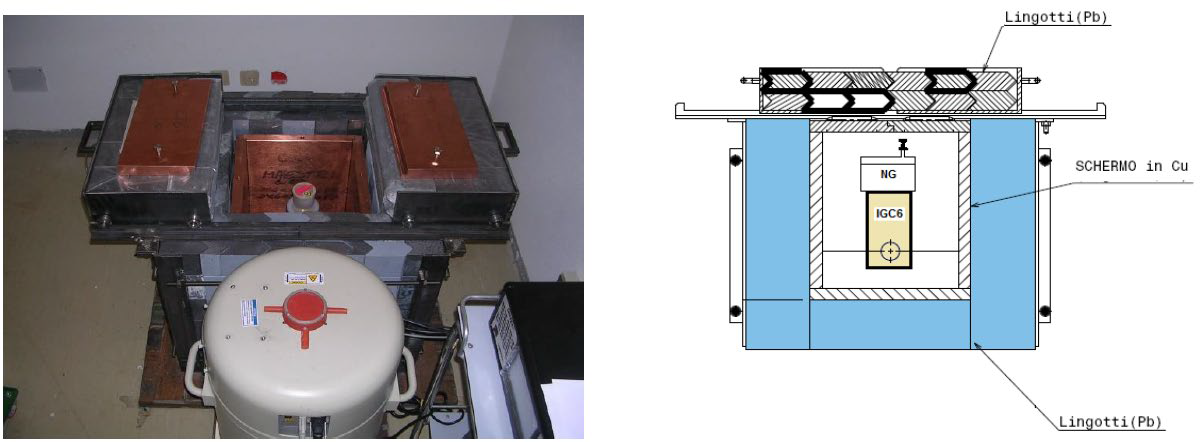

Ultra low background HPGe gamma spectrometer positioned inside a lead shield, at the ENEA Noble Gas Laboratory in Brasimone © ENEA
Ultra low background HPGe gamma spectrometer positioned inside a lead shield, at the ENEA Noble Gas Laboratory in Brasimone © ENEA

The signals produced by the interaction of cosmic rays that manage to cross the shielding are the main cause of the increase in the detector's background. For this reason, an anticoincidence system has been developed using two plastic scintillators, placed above the shield of the HPGe detector, which send the pulses they record inside a gate placed in the germanium multichannel analyzer: when the signal arrives from the scintillator, the gate blocks the data acquisition to avoid recording pulses generated by cosmic radiation.
